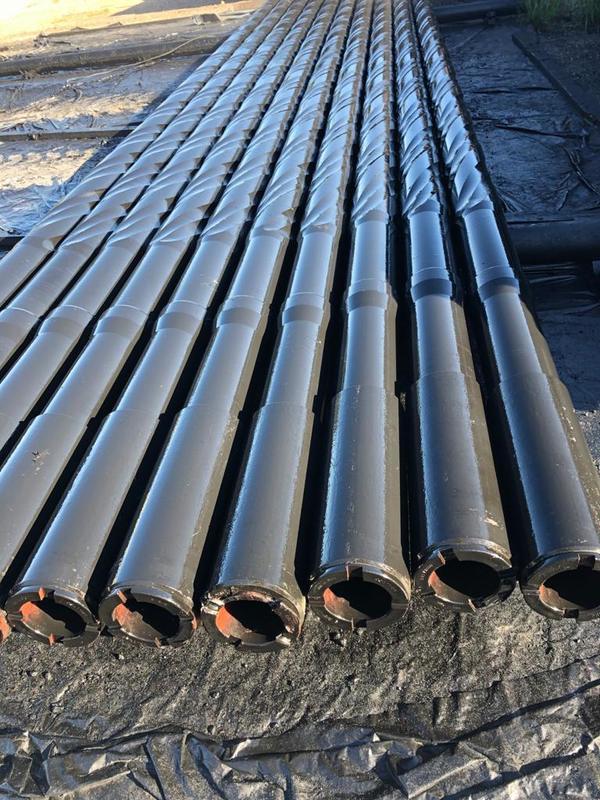

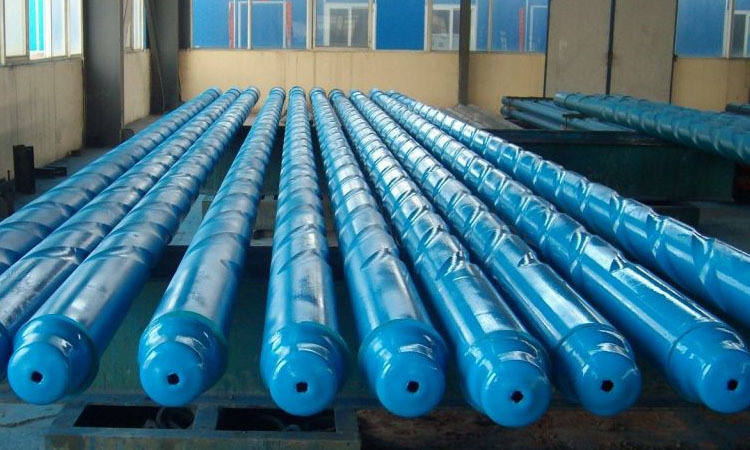

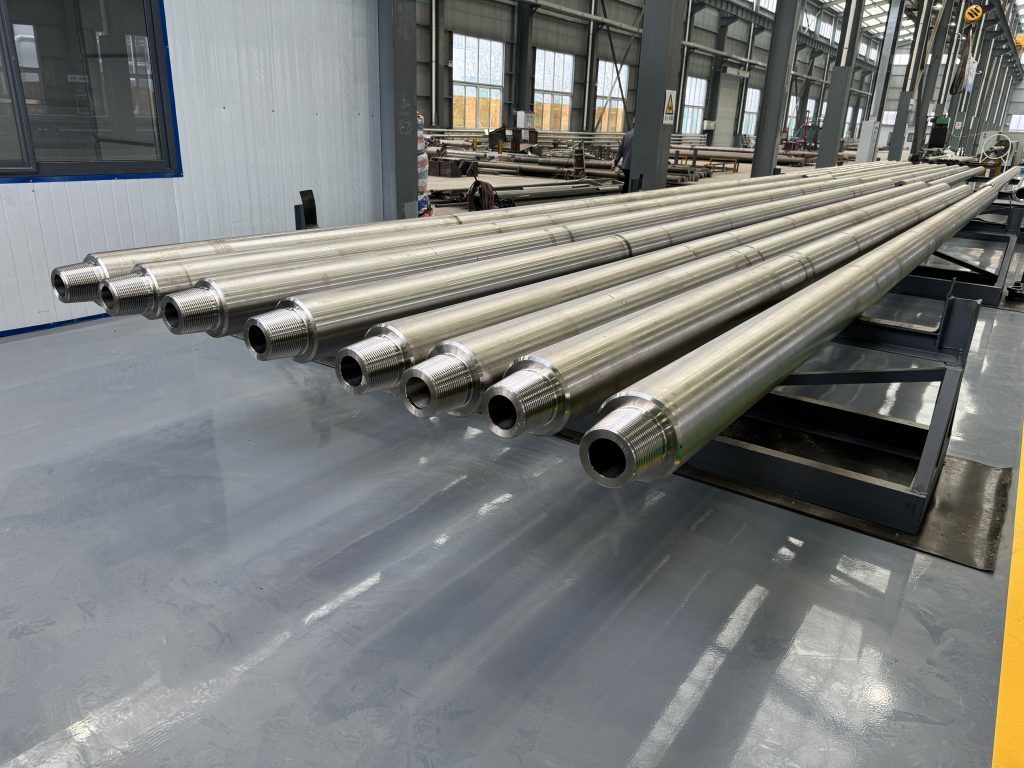

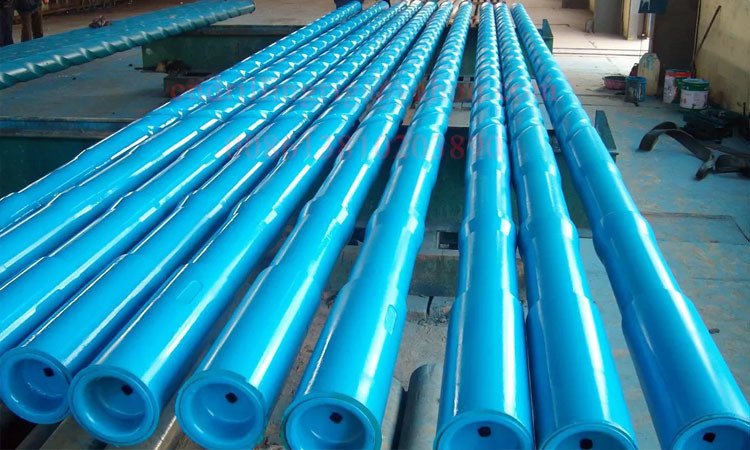

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

158.8 mm drill collar

71.4 mm bevel drill collar

9150 mm length drill collar

브랜드 이름:

SWS

연락주세요

인용문을 요구하세요

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

제품 상세정보

제품 이름:

드릴 색상

번호 및 연결 테이블:

NC46-62(4IF)

외경(인치):

6-1/2

외부 지름(MM):

158.8

내경(인치):

2-13/16

지름(MM) 안에서:

71.4

길이 (mm):

9150 또는 9450

베벨 직경(mm):

150

굽힘 강도 비율:

2.63:1

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar

최상의 가격을 얻으세요

88.9 mm Outside Diameter 144.5 mm Bevel Diameter NC44-60 Drill Collar

최상의 가격을 얻으세요

Oil Well Drilling Oil Field Equipment NC44-60 Drill Collar 6 Inch Outside Diameter

최상의 가격을 얻으세요

Drill Collar NC35-47 9150 mm Length for Oil Well Drilling Oil Field Equipment

최상의 가격을 얻으세요

연락주세요

86-519-83553967

Leo@service-js.com

86-519-83553967

지금 접촉하세요

제품 설명

COMPANY PROFILE

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 0

We(SWS) is a professional company engaged in the development, manufacturing, sales and service of downhole oil tools; Advanced downhole tool manufacturing technology from the U.S. and Canada is used to provide casing accessories that exceed industry quality standards to meet the challenging cementing tool needs of oilfields around the world.

To meet these demands, we have established a manufacturing facility of 78000sq ft. This facility has modern CNC machining, fabrication and processing equipment, testing and inspection facilities,together with raw material and production storage.

MAIN PRODUCTS

Our main products are: float collar and shoes, stage collars, liner hangers, Packer, cement plugs, cement heads, centralizers, casing and tubing, pup joints, coupling, etc.

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 1

CERTIFICATES

PRODUCT DESCRIPTION

Drill Collar is the basic component in the BHA which provides weight on the bit for drilling and keeps the drillsting in tension. Our Drill Collar has been approved by the NS-1 certification, it is manufactured from 4145H modified quenched and tempered steel, strict metallurgical specifications are followed to insure that full length heat treating produces a consistent maximum depth of hardness.

Features and Benefits

A hardness range of 285 to 341 BHN and a Charpy impact value of 40 ft-lbs are guaranteed at evenly distributed 16 points in any sections at room temperature;

Connections are completed (phosphate coated) to protect them from the elements after machining and to help prevent galling upon initial make-up;

Thread roots are cold rolled on APl and H-90 connections;

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 3

FACTORY PHOTOS

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 9

EXHIBITION

158.8 mm Outside Diameter 71.4 mm Bevel Diameter 9150 or 9450 mm Length Drill Collar 10

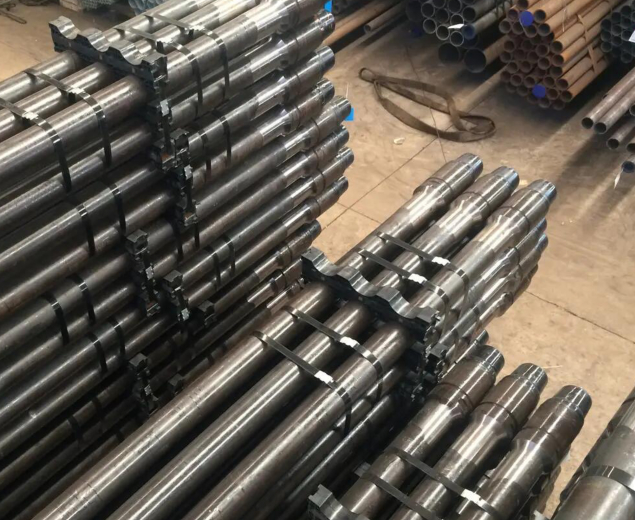

PACKAGE & TRANSPORTATION

CONTACT INFORMATIONS

Tel	+86 18015889633
Whatsapp	+86 18015889633
Mail	leo@service-js.com
Web	www.jssws-oil.com
