API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling

70MPa Bearing Pressure Float Collar

204°C Seal Float Shoe

High Flow Valves Cementing Float Equipment

원래 장소:

중국 장수

브랜드 이름:

SWS

연락주세요

인용문을 요구하세요
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling
제품 상세정보
차원:
5 -20
무게:
10kg
스레드 유형:
STC LTC BTC EUE NUE XC
재료:
탄소강/알루미늄 합금
보어 OD:
6 ", 7 5/8", 10 5/8 ", 14 3/8"
구멍 ID:
4 3/4 ", 6 1/4", 8 5/8 ", 12 3/8"
최소 보어:
2 ", 2 3/8"
밸브 크기:
70 밀리미터, 90 밀리미터
밀봉 온도:
150 ° C, 204 ° C
밸브 압력:
70mpa
봄 자료:
형광체 청동 C510
플런저 씰:
HNBR
생산 능력:
≥10000 PC/월
핵심 구성 요소:
판막
유형:
스키드 장착
관련 상품
좋은 가격 API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling 온라인

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

최상의 가격을 얻으세요
좋은 가격 API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling 온라인

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

최상의 가격을 얻으세요
좋은 가격 API 5CT 7-5/8

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

최상의 가격을 얻으세요
좋은 가격 Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty 온라인

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

최상의 가격을 얻으세요
연락주세요
86-519-83553967
Leo@service-js.com
86-519-83553967
지금 접촉하세요
제품 설명

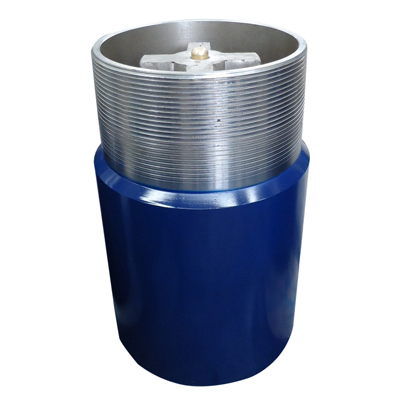

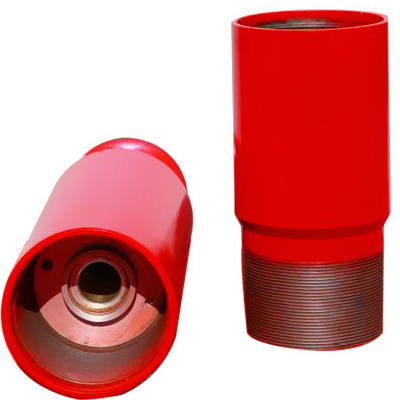

Multi Style Well Drilling Double Valve Float Collar and Float Shoe
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 0 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 0
Product Description
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 2 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 2
Name Size(in) Bore O.D.(in) Bore I.D.(in) Min Bore Parameter(in) Thread Type lb(in2)
Float Collar 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float Shoe 5 1/2" 6" 4 3/4" 2" 5 1/2" LCSG 4351
7" 7 5/8" 6 1/4" 2 3/8" 7" LCSG 3626
9 5/8" 10 5/8" 8 5/8" 2 3/8" 9 5/8" LCSG 3626
13 3/8" 14 3/8" 12 3/8" 2 3/8" 13 3/8" LCSG 3626
Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. Also, it provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures great accuracy of cement slurry displacement.
Hi Flow valves reduce fluid erosion and minimize pressure drop. Hi Flow valves are manufactured in two sizes: 70mm and 90mm. PDC drillable composite plastic materials are used for the valve components. Standard seal rated to 150°C with optional 204°C seal.
Valve body molded with fiber phenolic, 70MPa and 204°C seal. Spring purchased from Canada Victory Spring Company, phosphor bronze C510 material, high restoring force and drillable. Plunger seal top molded with HNBR, 70MPa and 204°C seal.
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 4 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 4 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 6 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 6 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 8 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 8 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 10 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 10 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 12 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 12 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 14 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 14 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 16 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 16
Company Profile
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 18 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 18
Our Advantages
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 20 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 20
Our Factory
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 22 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 22 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 24 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 24
Certifications
API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 26 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 26 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 28 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 28 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 30 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 30 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 32 API Standard Double Valve Float Collar and Float Shoe with 70MPa Bearing Pressure and 204°C Seal for Oilfield Drilling 32
Frequently Asked Questions
Q1: When can I get the price?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.
Q2: Could I have prices of your products?
Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.
Q3: Can I get a lower price if I order large quantities?
Yes, cheaper prices with bigger quantity orders.
Q4: Do you inspect the finished products?
Yes, each step of production and finished products will be inspected by QC department before shipping.
Q5: What about the lead time for the mass production?
Honestly, it depends on the order quantity and the season you place the order.
