API Standard 5-1/2" 139.7mm Oilfield Cementing Float Collar and Float Shoe with 150°C and 204°C Seals

139.7mm Float Collar

150°C Seal Float Shoe

204°C Seal Cementing Float Equipment

원래 장소:

중국 장수

브랜드 이름:

SWS

연락주세요

인용문을 요구하세요

제품 상세정보

차원:

50*30*30

무게:

10kg

핵심 구성 요소:

판막

밸브 유형:

단일 밸브 및 이중 밸브

처리 유형:

단조

사양:

2-3/8~20"

스레드 유형:

BTC\LTC\ 특수 스레드\EU\NU

강철 등급:

N80\L80\P110

보어 OD:

6 "

구멍 ID:

4 3/4"

최소 보어:

스레드 유형:

5 1/2 "LCSG

압력 등급:

4351 lb (IN2)

온도 등급:

204°C

재료:

섬유 페놀

API Standard 114.3mm Float Shoe and Float Collar with 150°C and 204°C Seals for Oilfield Drilling

최상의 가격을 얻으세요

API Standard Nose Float Shoe Cementing Float Equipment with 150°C and 204°C Seals for Oilfield Drilling

최상의 가격을 얻으세요

API 5CT 7-5/8" L80 BTC/LTC Eccentric Multiple Flank Jets Aluminum Alloy Float Shoe for Cementing Tool

최상의 가격을 얻으세요

Customizable API 5CT High Pressure Double Plug Cementing Head with 35MPa Working Pressure and 1 Year Warranty

최상의 가격을 얻으세요

연락주세요

86-519-83553967

Leo@service-js.com

86-519-83553967

지금 접촉하세요

제품 설명

API Standard 5-1/2" (139.7mm) Oilfield Cementing Tools - Casing Stab-In Float Collar and Float Shoe

High-performance float equipment designed for primary cementing operations in oilfield applications.

Technical Specifications

Name	Size (in)	Bore O.D. (in)	Bore I.D. (in)	Min Bore Parameter (in)	Thread Type	lb/in²
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Key Features and Benefits

Essential component of casing equipment for primary cementing operations
Guides casing to total depth and prevents contaminated mud entry
Provides landing point for casing wiper plugs
Reinforces lower end of casing string for improved structural integrity
Ensures precise cement slurry displacement
Hi-Flow valves reduce fluid erosion and minimize pressure drop
Available in 70mm and 90mm sizes
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic for 70MPa and 204°C operation
High-quality Canadian phosphor bronze springs with excellent restoring force

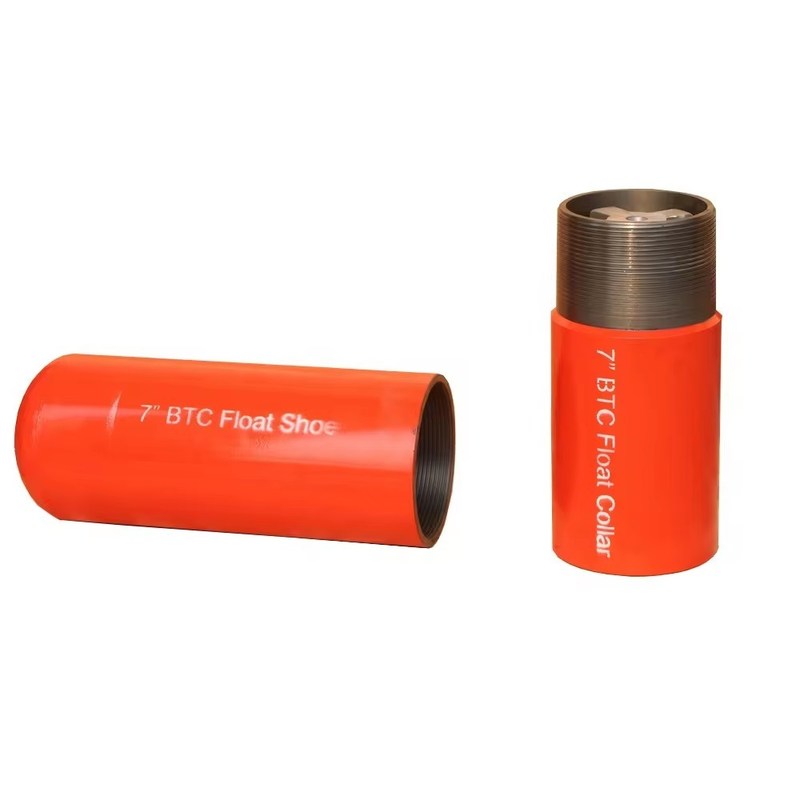

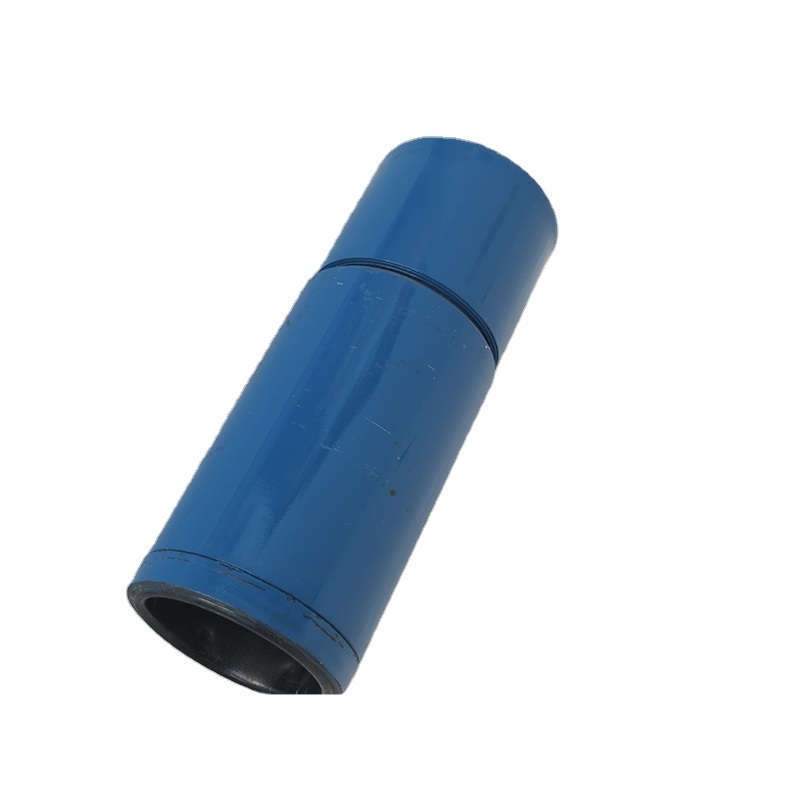

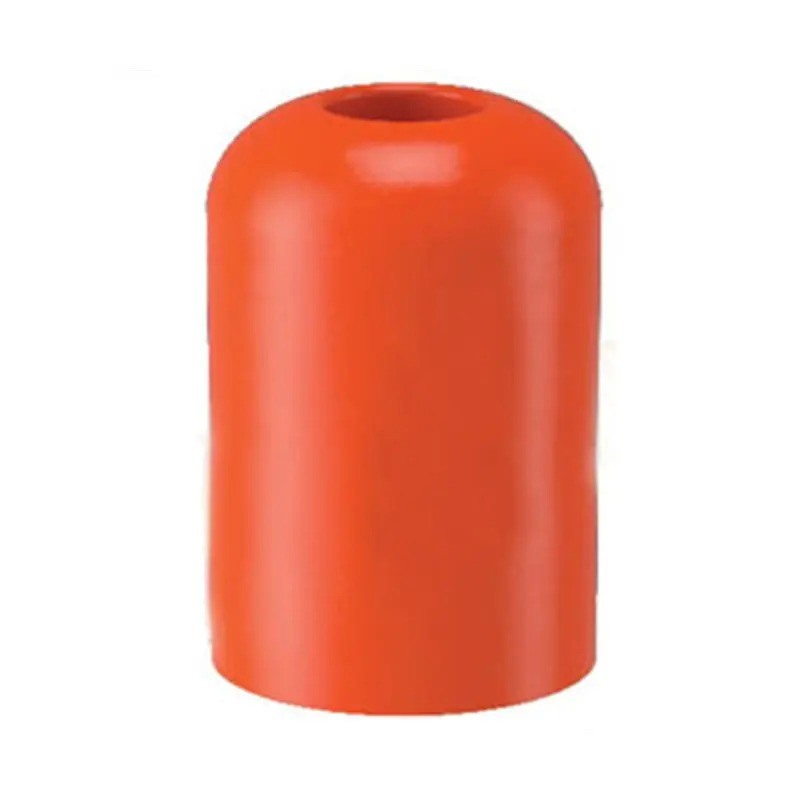

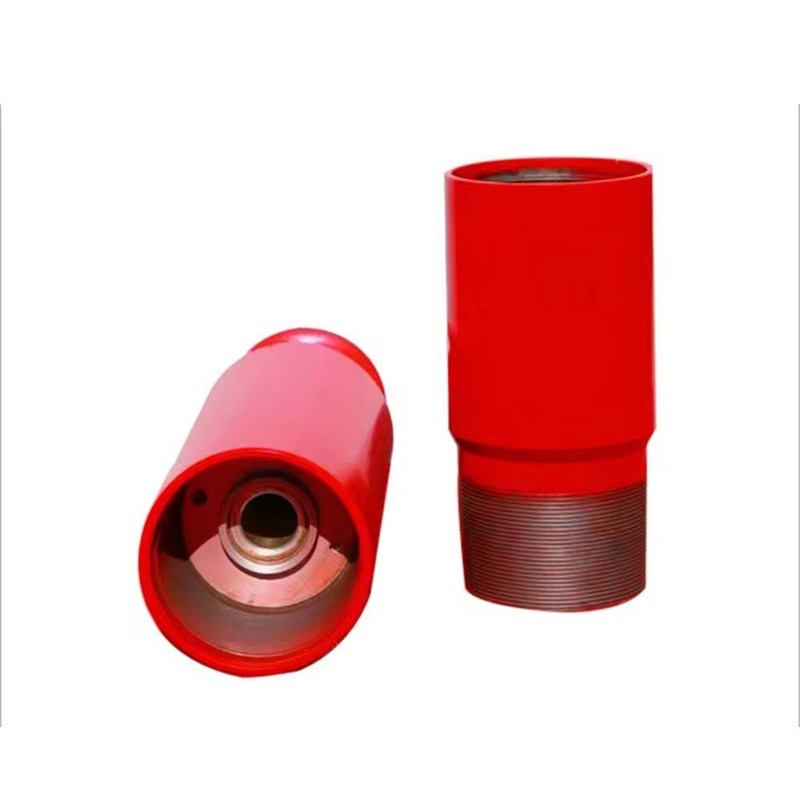

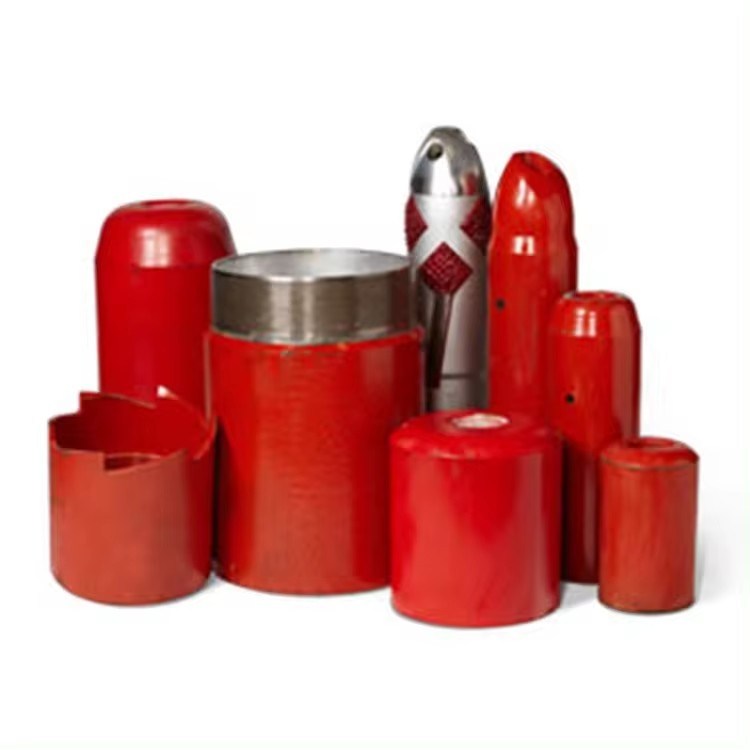

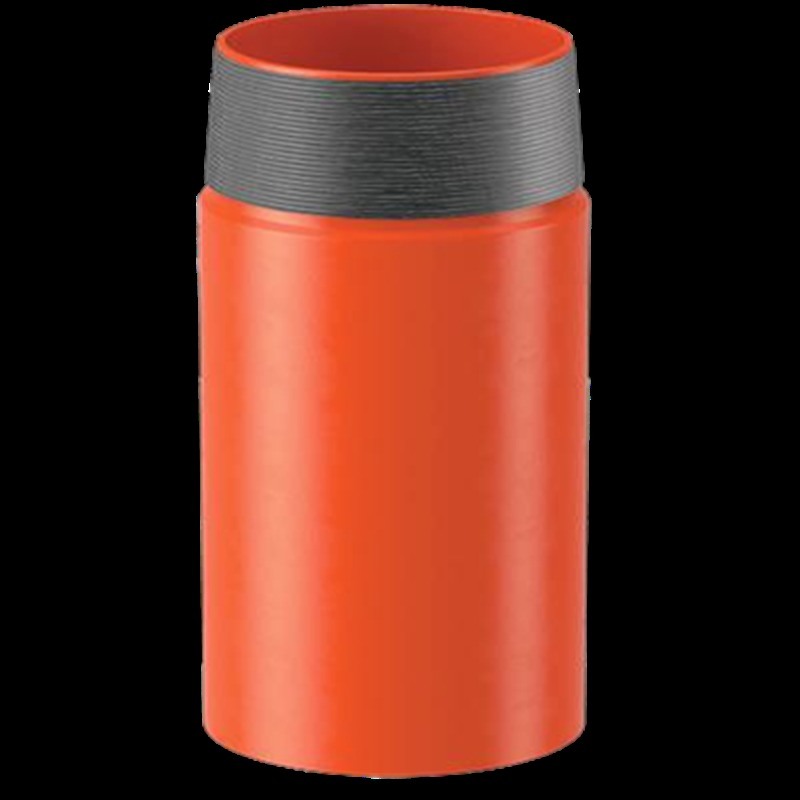

Product Images

Frequently Asked Questions

Q1: When can I get the price?

A: We typically provide quotes within 24 hours of receiving your inquiry. For urgent requests, please indicate this in your email for priority handling.

Q2: Could I have prices of your products?

A: Absolutely. Please send us an email with your requirements, and we'll respond within 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer volume discounts for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, our QC department conducts thorough inspections at each production stage and before shipment.

Q5: What about the lead time for mass production?

A: Production lead times vary depending on order quantity and seasonal demand factors.
