API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi

Basic Properties

Place of Origin: 중국 장수

Brand Name: SWS

Certification: API ISO

Trading Properties

Minimum Order Quantity: 1

Price: US$150

태그

수신 기판 부유식 채유 차페물

Specifications

Dimension:	5 -20	Weight:	10kg
Thread type:	STC LTC BTC EUE NUE XC	Material:	P110
Size:	5 1/2 -9 5/8	Work pressure:	15000psi
Bore O.D.:	6 "-14 3/8"	Bore I.D.:	4 3/4 "-12 3/8"
Min Bore:	2 "-2 3/8"	Valve size:	70mm 및 90mm
Seal temperature:	150 ° C (옵션 204 ° C)	Valve body material:	섬유 페놀
Valve body pressure:	70mpa	Spring material:	포스퍼 브론즈 C510
Plunger seal material:	HNBR
High Light:	API standard float collar , 5 1/2-9 5/8 float collar , 15000psi oilfield drilling collar

제품 설명

API Cementing Tools Oilfield Drilling Equipment Casing Float Collar Float Shoe Standard Single Valve

Product Description

Float equipment serves as the backbone of casing equipment used during primary cementing operations. Float equipment guides the casing to total depth and prevents contaminated mud from entering the casing. It also provides a landing point for casing wiper plugs, reinforces the lower end of the casing string, and ensures precise cement slurry displacement.

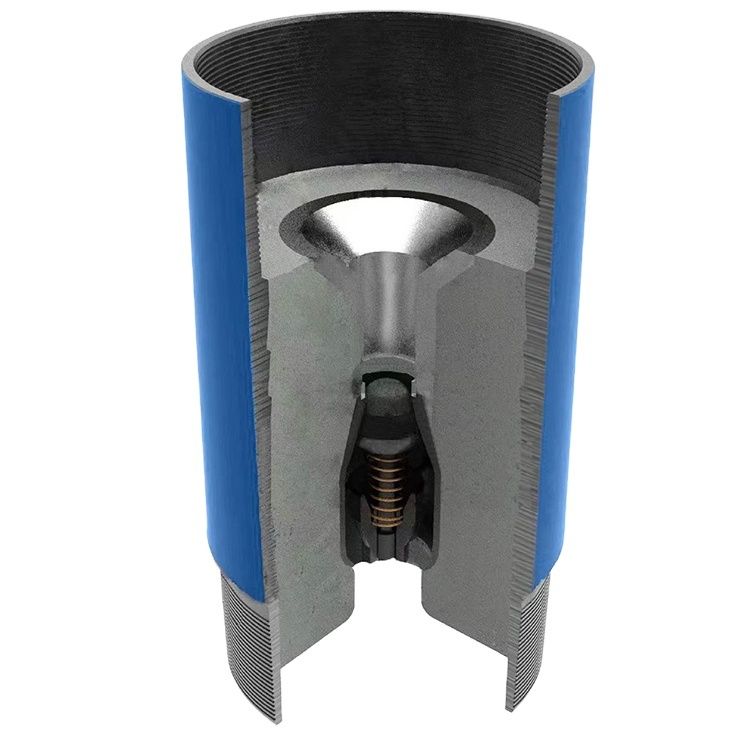

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi 0

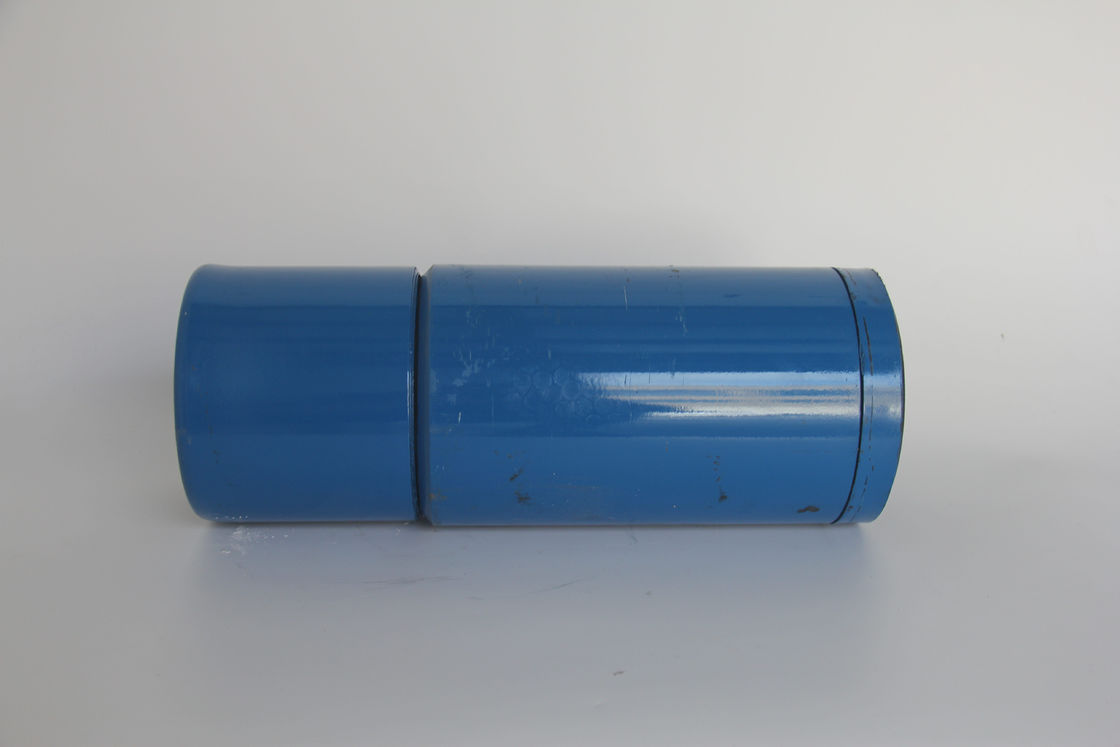

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi 1

Key Features

Hi Flow valves to reduce fluid erosion and minimize pressure drop
Available in two sizes: 70mm and 90mm
PDC drillable composite plastic materials for valve components
Standard seal rated to 150°C with optional 204°C seal
Valve body molded with fiber phenolic, rated for 70MPa and 204°C
High-quality spring from Canada Victory Spring Company
Plunger seal top molded with HNBR, rated for 70MPa and 204°C

Specifications

Name	Size(in)	Bore O.D.(in)	Bore I.D.(in)	Min Bore Parameter(in)	Thread Type	lb(in²)
Float Collar	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626
Float Shoe	5 1/2"	6"	4 3/4"	2"	5 1/2" LCSG	4351
	7"	7 5/8"	6 1/4"	2 3/8"	7" LCSG	3626
	9 5/8"	10 5/8"	8 5/8"	2 3/8"	9 5/8" LCSG	3626
	13 3/8"	14 3/8"	12 3/8"	2 3/8"	13 3/8" LCSG	3626

Our Factory

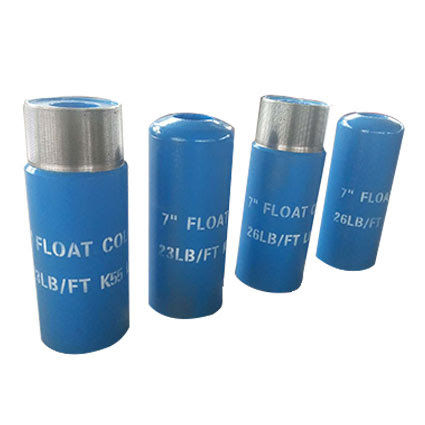

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi 2

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi 3

Certifications

API Standard Float Collar 5 1/2"-9 5/8" for Oilfield Drilling 15000psi 4

Frequently Asked Questions

Q1: When can I get the price?

A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard your inquiry as priority.

Q2: Could I have prices of your products?

A: Welcome. Please feel free to send us an email here. You will get our reply in 24 hours.

Q3: Can I get a lower price if I order large quantities?

A: Yes, we offer cheaper prices for larger quantity orders.

Q4: Do you inspect the finished products?

A: Yes, each step of production and finished products will be inspected by our QC department before shipping.

Q5: What about the lead time for the mass production?

A: The lead time depends on the order quantity and the season you place the order.
